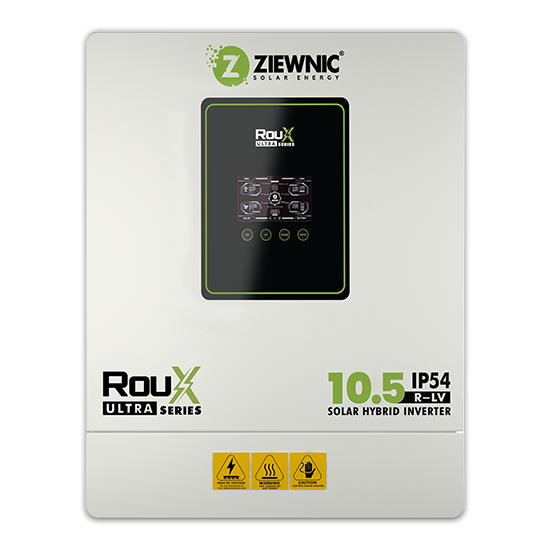

IP54 (PV15000)

5 out of 5

Introducing Pakistan’s first Real 6th Generation Inverter, built with ST Singapore high-efficiency IGBT/MOSFET technology and a high-speed processing chip for instant, uninterrupted power delivery. The Roux Ultra Series multiple operation modes, produces a 100% pure sine wave with power factor 1.0, and can operate seamlessly with or without a battery.
Equipped with built-in Wi-Fi, one-button restore, fault code recording, battery equalization, and automatic lithium battery activation, it ensures smart and effortless control. Its IP54 protection, along with conformal coating, anti-dust design, and a built-in electronic breaker, provides reliable performance even in tough environments.
The inverter also features a modern color touch LCD with adjustable parameters, full compatibility with all lithium batteries, and a powerful surge capacity of up to 2× rated load. With 160A AC + Solar charging, 160A MPPT controller, a wide 90–450V PV input range, dual smart load output, built-in zero export, and 2/18+18A PV input (PV12000) / 2/32A+18A PV input (PV15000), it delivers exceptional efficiency and performance—proudly designed and engineered in Taiwan.

SPECIFICATION
Phase	1-Phase
Maximum PV Input Power	15000 W
Rated Output Power	10500 W
Maximum Solar Charging Current	160 A
GRID-TIE OPERATION - PV INPUT(DC)
Nominal DC Voltage/Maximum DC Voltage	360 VDC/500 VDC
Maximum DC Open Circuit Voltage	500Vdc
Maximum DC Voltage	90~450 VDC
Number of MPPT Trackers/Maximum Input Current	32A/18A
GRID OUTPUT(AC)
Nominal Output Voltage	220/230/240 VAC
Output Voltage Range	195.5-253 VAC
Nominal Output Current	47.72A
Power Factor	>0.99
Feed-in Grid Frequency Range	49~51±Hz
EFFICIENCY
Maximum Conversion Efficiency (Solar to AC)	98%
TWO LOAD OUTPUT POWER(V2.0)
Full Load	10500 W
Maximum Main Load	10500 W
Maximum Second Load(battery mode)	2040~7140W
Main Load Cut Off Voltage	52 VDC
Main Load Return Voltage	54 VDC
OFF-GRID OPERATION - AC INPUT
AC Start-up Voltage/Auto Restart Voltage	120-140 VAC/180 VAC
Acceptable Input Voltage Range	90-280 VAC or 170-280 VAC
Maximum AC Input Current	47.72A
Nominal operating frequency	50/60Hz
Surge power	22000W
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage	220/230/240 VAC
Output Waveform	PURE SINE WAVE
Efficiency(DC to AC)	94%
BATTERY & CHARGER
Nominal DC Voltage	48 VDC
Maximum Charging Current (Solar to AC)	160A
Maximum AC Charging Current	160A
GENERAL
Communication Port	BMS - RS485 Wi-Fi - RS232
Operating Temperature	-10~50°C
Operating Temperature	-10~50°C
PHYSICAL
Net Weight(kgs)	15.9
Dimension H x W x D(mm)	576 x 481 x 166mm
