IP54 (PV5000)

5 out of 5

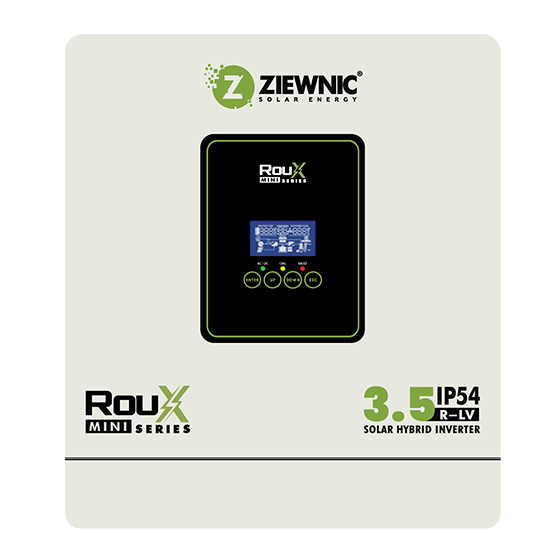

Introducing Pakistan’s Real 6th Generation inverter, built with advanced high-efficiency MOSFET technology and an enhanced chopper design to deliver exceptional stability and performance. The Roux Mini ensures a pure 100% sine wave output, providing safe, smooth, and reliable power for all your sensitive appliances.
Designed for flexibility, it operates seamlessly with batteries, main utility supply, or generator power, and features a built-in automatic electronic breaker for maximum protection. Its upgraded LCD display offers a modern and user-friendly control experience.
With IP54 protection for dust and splash resistance, wide PV input range (55–43 0 VDC), and support for up to 18A input current, Roux Mini is fully compatible with all lithium battery types. Engineered in Taiwan, it stands as a symbol of durability, efficiency, and next-level power management.

SPECIFICATION
Rated Power	3500VA
AC Input
AC Input Voltage	230 VAC
Voltage	170~280 VAC (For Personal Computer)
Selectable Voltage Range	90~280VAC (For Home Appliances)
Frequency Range	50 HZ / 60 HZ (Auto Sensing)
AC OUTPUT
AC Voltage Regulation	230 VAC + 5%
Nominal Current Output	14.54A
Efficiency (Peak) PV to INV	97%
Efficiency (Peak) Battery to INV	94%
Transfer Time	10ms Typical(MS); 20ms Stapical( Appliances)
BATTERY AND AC CHARGER
Battery Voltage	24 VDC
Floating Charge Voltage	27 VDC
Overcharge Protection	33 VDC
Maximum AC Charge Current	80A
SOLAR CHARGER
Maximum PV Array Power	5000W
MPPT Range @ Operating Voltage	55-430 VDC
Maximum PV Array Open Circuit Voltage	430 VDC
Maximum Charge Current	TRUE (MPPT) 80A
Maximum PV Input Current	18A
Maximum Efficiency	98%
PHYSICAL
Communication Interface	RS232/GPRS/Wi-Fi
Humidity	5% to 95% Relative Humidity (Non~Condensing)
Operating Temperature	0°C~55°C
Storage Temperature	-15°C-~60°C
