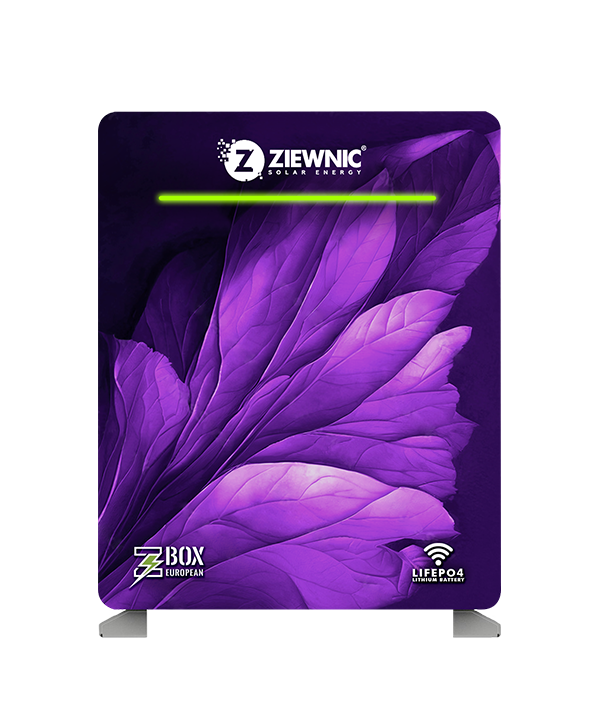

- Experience a new era of energy storage with Pakistan’s first wall-mounted lithium battery featuring a vibrant RGB status light and a robust 25.6V - 280AH LiFePO4 power pack. Engineered with American-chip Pace Active BMS and premium grade prismatic cells, it delivers over 8,000 cycles, a decade-long warranty, and exceptional reliability. Its intelligent BMS with a 1.2A equalizer ensures fast, uniform cell balancing, while high performance is guaranteed through up to 280A charge/discharge capability, a 1000A cold-start impulse, and an ultra-low 4mA standby draw with an automatic 30-day safety cutoff.
- Compact, lightweight, and easy to install, this wall-mounted battery supports optional LCD and communication interfaces (CAN/RS485/RS232), offering complete protection against overcharge, deep discharge, overcurrent, short circuit, and extreme temperatures. Certified with UN38.3, IEC62619, MSDS, and CE, it works seamlessly with 95% of inverter brands in Pakistan — Including Inverex, Voltronic, Solis, Growatt, Deye, GoodWe, and nearly all other inverters available in Pakistan — making it a powerful, future-ready solution for solar, hybrid, o -grid, UPS, and storage applications.
| SPECIFICATION | |
|---|---|
| Case design | Floor Standing / Wall Mount |
| Battery Type | LiFePO4 |
| Normal Battery Voltage (VDC) | 25.6V |
| Normal Capacity (25 C 0.2C) (Ah) | 280A |
| Normal Capacity (25C, 0.2C) (WH) | 7168WH |
| Standard Charge Voltage / Power | 28.0V / 2800W |
| Operation Voltage range / Cut-Off / Battery Full | 22V ~ 27V |
| Max. Continue Discharge Current (A) | 200A |
| Parallels Function | Support 16 Units in Parallels |
| Max. Continue Charge Current (A) | 200A |
| Cells brand / Cycle Life | >8000 Cycles (80% DOD) |
| Charging Temperature Range / Discharging | 0~65°C / -20~65°C |
| Wi-Fi Module | Built-In |
| Storage Temperature | 0°C~30°C |
| IP Degree | IP21 |
| Storage duration | 3 Months at 25°C |
| Safety standard | UN38.3, MSDS |
| Communication Port (Optional) | RS485, RS232, CAN |
| PROTECTION | |
| Protection | Over Charge Protection, over Discharge Protection, Over Current Protection, Short Circuit Protection, Over Temperature Protection |
| DIMENSION | |
| LxWxH mm | 490*610*150mm |
| Weight (GW Kg) | 50 Kg |
