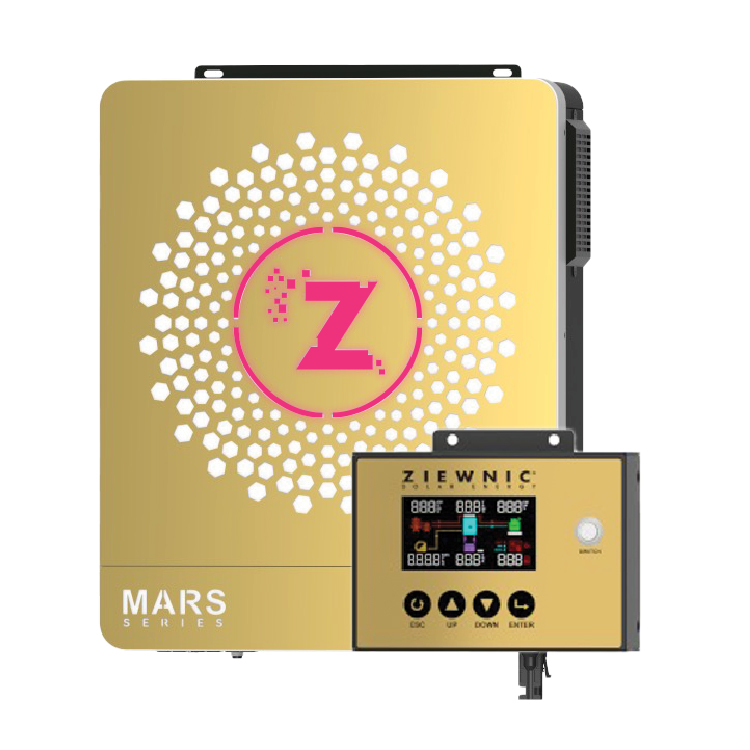

ON / OFF/ MKS / KS Hybrid Inverter 6.5 (KVA) PV9200
Download Catalog
-
Rs 199,500.00
Category : Mars Series
Availability : Out of Stock
- Introducing 1st Time In Pakistan Real 6th Gen Inverter, Supporting high efficiency Mosfet, Chopper with bigger size
- Mars Series Inverter supports Multiple operation modes (ON/OFF/HYBRID)
- 100% Pure Sine Wave Solar Inverter
- Output power factor 0.9
- Battery equalization in program (30)
- Record fault code feature in program (25)
- Adaptable to main Voltage/generator power
- Conformal coating to prevent from dust and humidity
- Grid-Tied net metering feature
- Built-in Zero export
- Built-in automatic electronics breaker for overload & short circuit protection
- Overload Protection on 120% Load Surge Capacity 2 Rated Power for 5 Seconds
- New Remote Color Screen LCD function design with touch buttons
- Optional Wi-Fi available for IOS/Android devices
- Inverter running with battery & without battery
- 1 button restore setting options in program (00)
- Built-in anti dust for harsh environment
- 98% Real time sharing
- Compatible with all kinds of Lithium Batteries
- Battery charging current upto 200A (AC + Solar)
- MPPT Based Solar Charge Controller (140A)
- High PV input voltage range (90-550 VDC)
- 12V DC Output 32A
- Maximum PV input current 32A
- Multiple operation modes (On Grid/ Of Grid/Hybrid)
- Designed and Engineered in Taiwan
| SPECIFICATION | |
|---|---|
| PHASE | |
| Phase | 1-Phase out |
| Maximum PV input power | 9200VA |
| Rated AC output power | 7000VA |
| Maximum charging power | 6500VA |
| GRID TIE OPERATION | |
| PV input( DC ) | - |
| Nominal DC Voltage Maximum DC Voltage | 360 VDC / 550 VDC |
| Start - up Voltage / Initial Feeding Voltage | 120 VDC / 240 VDC |
| MPP Voltage Range | 90 VDC ~ 455 VDC |
| Number of MPP Trackers / Maximum Input Current | 1 x 32A |
| Feed-in Grid Voltage Range | 195 ~ 253 VAC |
| Feed-in Grid Frequence Range | 49 ~ 51 +- 1Hz |
| GRID OUTPUT ( AC ) | |
| Nominal Output Voltage | 220/230/240 VAC |
| Output Voltage Range | 220-230 |
| Nominal Output Current | 30.9A |
| Power Factor | 0.9 |
| EFFICIENCY | |
| Maximum Conversion Efficiency (DC / AC) | 97% |
| European Efficiency@ Vnominal | 98% |
| OFF - GRID OPERATION WITH BATTERY | |
| AC Input | |
| AC Start - up Voltage / Auto Restart Voltage | 90-140 VAC / 180 VAC |
| Acceptable Input Voltage Range | 170 - 280 VAC |
| Maximum AC Input Current | 60A |
| PV INPUT ( DC ) | |
| Maximum DC Voltage | 550 VDC |
| MPP Voltage Range | 90 ~ 455 VDC |
| Number of MPP Trackers Maximum Input Current | 1 x 32A |
| Rated Current MPPT | 140A |
| BATTERY MODE OUTPUT ( AC ) | |
| Nominal Output Voltage | 220/230/240 VAC |
| Emolency ( DC to AC ) | 93% |
| Output Waveform | Pure Sinewave |
| HYBRID OPERATION | |
| PV INPUT (DC) HYBRID | |
| Nominal DC Voltage / Maximum DC Voltage | 360 VDC / 550 VDC |
| Start - up Voltige / Intial Feeding Voltage | 120 VDC / 240 VDC |
| MPP Voltage Range | 90 VDC / 455 VDC |
| Number of MPP Trackers/Maximum Input Current | 1 x 32A |
| GRID OUTPUT ( AC ) HYBRID | |
| Nominal Output Voltage | 220/230/240 VAC |
| Output Voltage Range | 220-230 |
| Nominal Output Current | 30.9A |
| AC INPUT (HYBRID) | |
| AC Start - up Voltage / Auto Restart Voltage | 90 - 140 VAC |
| Acceptable Input Voltage Range | 170 - 280 VAC |
| Maximum AC Input Current | 34A |
| BATTERY MODE OUTPUT ( AC ) HYBRID | |
| Nominal Output Voltage | 220/230/240 VAC |
| Emolency ( DC to AC ) | 93% |
| BATTERY & CHARGER | |
| Nominal DC Voltage | 48V |
| Emolency ( DC to AC ) | 60/30 A Default Adjustment |
| No Load Power Consumption | 65W |
| GENERAL | |
| PHYSICAL | |
| Dimension , D x W x H ( mm ) | 540 x 440 x 205 mm |
| INTERFACE | |
| Communication Port | com-Rs-232/USB |
| ENVIRONMENT | |
| Humidity | 0~90% RS (Non-Considering) |
| Operating Temperature | -10 to 50 Degree |
| Altitude | 0 ~ 1000 m** |
