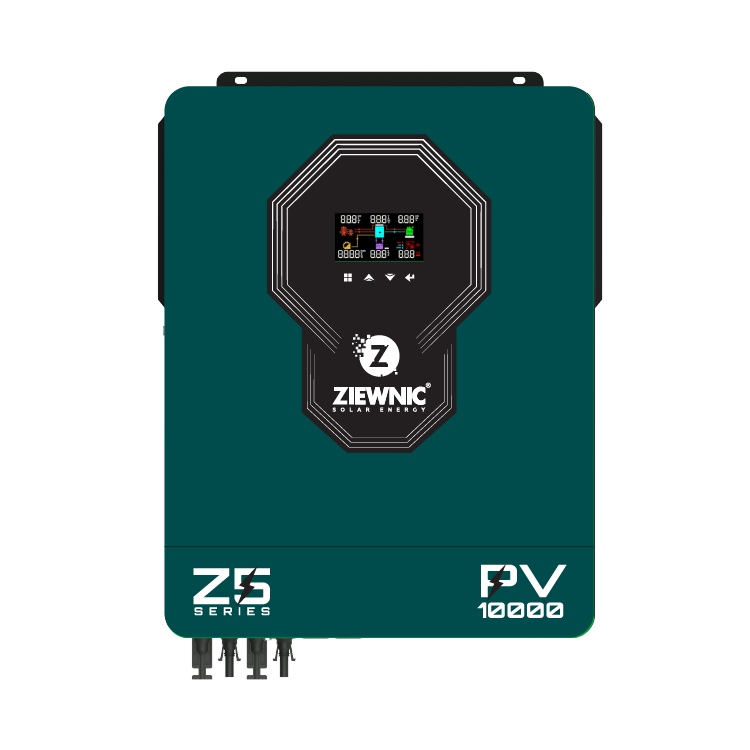

ON/OFF/MKS/KS Solar Hybrid Inverter 8.5 (KVA) 6G PV10000
Download Catalog
-
Rs 0.00
Category : Z5 Series
Availability : Out of Stock
- Introducing 1st Time In Pakistan Real 6th Gen Inverter, Supporting high efficiency Mosfet, 3 Chopper
- Inverter supports Multiple operation modes (ON/OFF/MKS/KS)
- 100% Pure Sine Wave Solar Inverter
- Output power factor 1.0
- Battery equilizations in program (30) Record fault code feature in program (25)
- Adaptable to main Voltage/generator power
- Conformal coating to prevent from dust and humidity
- Grid-Tied net metering feature with 100% reverse grid feeding Builtin Zero export
- Built-in automatic electronics breaker for overlood & short circuit protection
- Overload Protection on 120% Load Surge Capacity 2 Rated Power for 5 Seconds
- New Color Screen LCD function design with touch buttons
- Optional Wi-Fi available for IOS/Android devices
- Inverter running with battery & without battery
- 1 button restore setting options in program (00)
- Built-in anti dust for harsh environment
- Compatible with all kinds of Lithium Batteries
- 98% Real time sharing
- Battery charging current upto 360A (AC + Solar)
- MPPT Based Solar Charge Controller (180A)
- High PV input voltage range (90-550 VDC)
- Dual output for heay and normal load
- Two PV port parallel based 32 A
- Multiple operation modes (On Grid/ Off Grid/Hybrid)
- European Design and Engineered in Taiwan
| SPECIFICATION | |
|---|---|
| Phase | 1-Phase |
| Maximum PV Input Power | 10000W |
| Rated Output Power | 8500W |
| Maximum Solar Charging Current | 180A |
| GRID TIE OPERATION | |
| PV INPUT ( DC ) | |
| Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC |
| Start-up Voltage/Initial Feeding Voltage | 90VDC/120VDC |
| Maximum DC Voltage | 90~450VDC |
| Number of MPPT Trackers/Maximum Input Current | TWO PV PORT PRARLLEL BASED 32A |
| GRID OUTPUT ( AC ) | |
| Nominal Output Voltage | 220/230/240VAC |
| Output Voltage Range | 195.5~253VAC |
| Nominal Output Current | 38A |
| Power Factor | >0.99 |
| Feed-in Grid Frequency Range | 49~51±1Hz |
| EFFICIENCY | |
| Maximum Conversion Efficiency( Solar to AC) | 98% |
| TWO LOAD OUTPUT POWER(V2.0) | |
| Full Load | 8500W |
| Maximum Main Load | 8500W |
| Maximum Second Load(battery mode) | 2833W |
| Main Load Cut Off Voltage | 44VDC |
| Main Load Return Voltage | 54VDC |
| OFF-GRID OPERATION | |
| AC Input | |
| AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC |
| Acceptable Input Voltage Range | 90-280VAC or 170-280VAC |
| Maximum AC Input Current | 40A |
| Nominal operating frequency | 50/60Hz |
| Surge power | 17000W |
| PV INPUT (DC) OFF- GRID OPERATION | |
| Maximum DC Voltage | 500VDC |
| MPPT Voltage Range | 90VDC~450VDC |
| Number of MPPT Tracker/Max. Input Current | 32A |
| BATTERY MODE OUTPUT ( AC ) | |
| Nominal Output Voltage | 220/230/240VAC |
| Output Waveform | Pure Sine Wave |
| Efficiency(DC to AC) | 98% |
| GENERAL | |
| PHYSICAL | |
| Dimension, D X W X H(mm) | 420*310*110 |
| Net Weight(kgs) | 14.2 |
| INTERFACE | |
| Communication Port | Rs232/WIFI/GPRS |
| ENVIRONMENT | |
| Operating Temperature. | -10~80°C |
| BATTERY & CHARGER | |
| Nominal DC Voltage | 48VDC |
| Maximum Charging Current (Solar to AC) | 180A |
| Maximum AC Charging Current | 180A |
