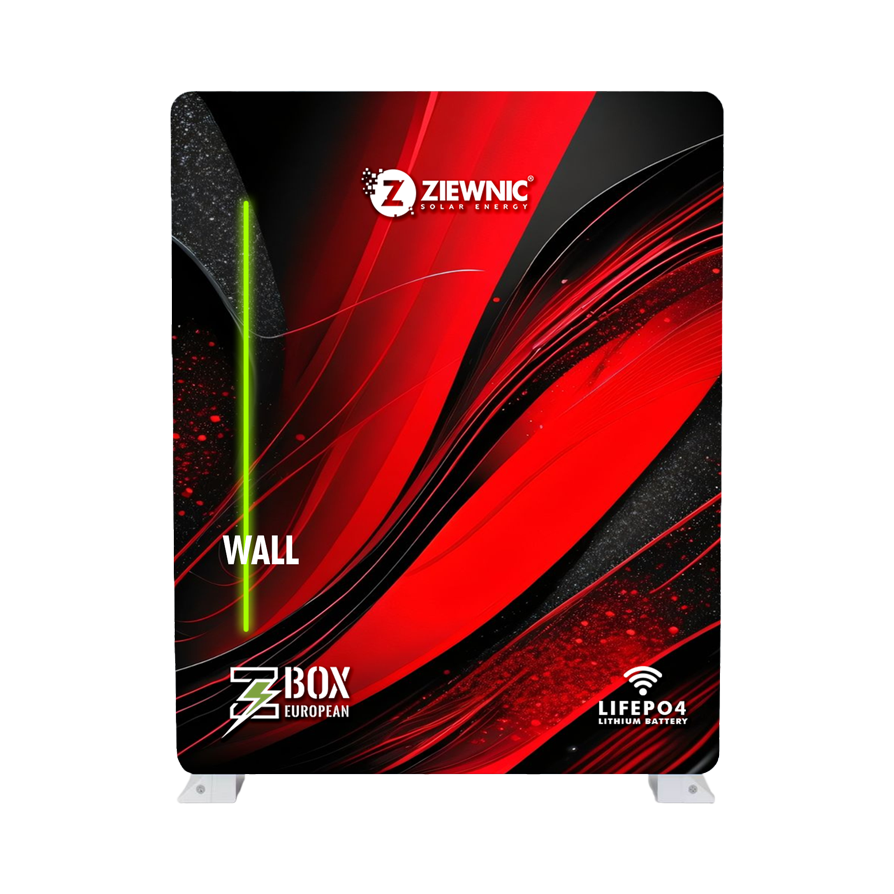

LITHIUM BATTERY POWER BANK 25.6V100AH
Download Catalog
-
Rs 0.00
Category : Z-BOX European (Lithium Battery)
Availability : Out of Stock
- INTRODUCING 1ST TIME IN PAKISTAN, WALL MOUNTED LITHIUM BATTERY ALONG WITH LARGE RGB STATUS LIGHT
- 25.6V LIFEPO4 PACK, SUPERIOR SAFETY AND RELIABILITY, 1C/1C CONTINUAL CHARGE AND DISCHARGE
- AMERICAN CHIP BASED PACE ACTIVE BMS BASED
- TOP BRAND CELL SUCH AS, LONG PRISMATIC CELLS
- MORE THAN 8000 TIMES CHARGE/DISCHARGE CYCLE LIFE
- WITH INTELLIGENT BMS SYSTEM TO OPTIMIZE THE PERFORMANCE
- BUILT-IN INTELLIGENT BMS MANAGEMENT SYSTEM
- LONG LIFESPAN: 10 YEARS WARRANTY, 20+ YEARS LIFE DESIGN
- BUILT-IN 1,2A CELL EQUALIZER, CAN BALANCE ALL CELLS IN SHORT TIME
- CHARGE & DISCHARGE CURRENT IS UP TO MAXIMUM 100A AND THE COLD START IMPULSE CURRENT IS 1000A
- EXCELLENT STANDBY SELF-CONSUMPTION AS LOW AS 4MA
- HIGH DENSITY, SMALL SIZE AND WEIGHT
- WALL MOUNTED DESIGN, EASY INSTALLATION
- OPTIONAL FOR LCD DISPLAY OR COMMUNICATION (CAN/RS485/RS232)
- ALL AROUND PROTECTION AND UNATTENDED OPERATION
- APPLICATION FOR OFF-GRID/HYBRID/SOLAR SYSTEM/UPS/INVERTER/STORAGE POWER SYSTEM EXCELLENT STANDBY SELF-CONSUMPTION AS LOW AS 4MA. AUTOMATICALLY OUTPUT CUT OFF AFTER 30 DAYS NO-CHARGE
- DISCHARGE TO ENSURE SECURITY (ALSO CAN CUT OFF OUTPUT BY MANUAL OPERATION)
- LOAD CAPACITY 25.6V 100AH (2560WH).
- OVER CHARGE PROTECTION, OVER DISCHARGE PROTECTION, OVER CURRENT PROTECTION, SHORT CIRCUIT PROTECTION, OVER TEMPERATURE PROTECTION
- COMMERCIALLY APPROVED FIRE CERTIFICATE UN38.3 & OTHER SAFETY STANDARD IEC62619, MSDS & CE
- COMPACTIBLE WITH ZIEWNIC, INVEREX, VOLTRONIC POWER, CROWN, SAKO, NEXT POWER, SOLIS, GROWATT, SOFAR, SOLAX, DEYE, SRNE, PYLON TECH, CHUANGHUIYUAN, SUMRY, SOROTEC, MEGAREVO, GOODWE, MUST, XINDUN (SUPPORTED ALL KINDS OF INVERTERS ATLEAST 90%)
| SPECIFICATION | |
|---|---|
| Battery Type | LiFePO4 |
| Normal Battery Voltage (VDC) | 25.6V |
| Normal Capacity (25C, 0.2C) (WH) | 2560WH |
| Voltage Window (VDC) | 22.4~28.8V |
| Solar Charge Voltage (VDC) | 27.6V |
| Max. Continue Discharge Current (A) | 100 |
| Max. Pulse Discharge Current (A) | 120A 30Sec. |
| Max. Continue Charge Current (A) | 100 |
| Case Design | Powerwall Design |
| Cycle Life (+25C 0.2 80%DOD) | >8000 Cycles with 10 Years Warranty |
| Cell Equalizer Current (A) | 1~5A Mox |
| Terminal | M8 |
| Storage Temperature | 0°C~30°C |
| Storage Duration | 3 months at 25°C |
| Safety Standard | UN38.3, IEC62619, MSDS,CE |
| IP Degree | IP20 |
| PROTECTION | |
| Protection | Over Charge Protection, over Discharge Protection, Over Current Protection, Short Circuit Protection, Over Temperature Protection |
| AMNIENT | |
| Noise (dB) | <40dB (1 Meter) |
| Working Temperature | -20°C ~ 65°C |
| Humidity | 0~95% (no condensation) |
| Sea Level (m) | -1500 |
| DIMENSION | |
| LxWxH mm | L370*W380*H170 |
| Weight (NW Kg) | 27.0Kg |
| Weight (GW Kg) | 28.0Kg |
