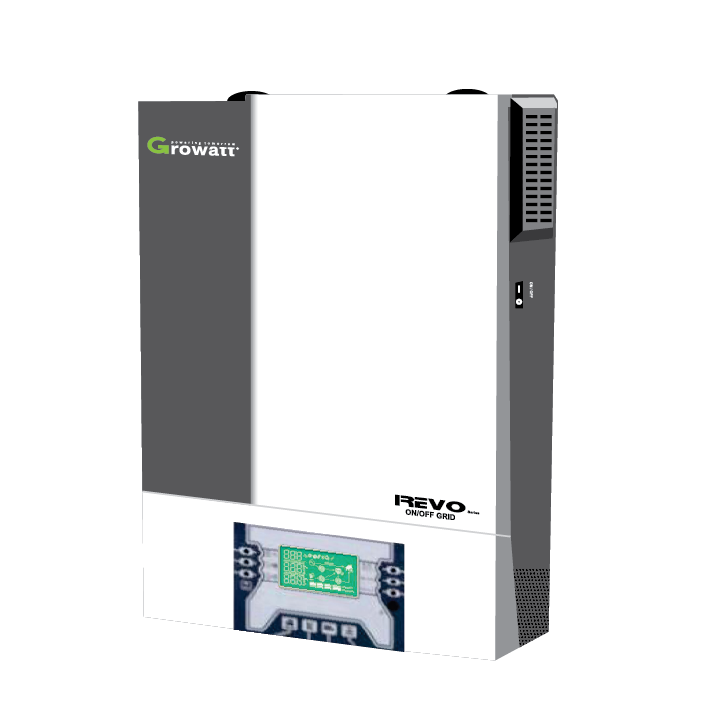

Revo ON/OFF Grid (4000-24)
Download Catalog
-
Rs 0.00
Category : Revo inverter Series
Availability : Out of Stock
- 1st inverter in Pakistan with Grid - tie and Self - consumption feature
- 100 % Pure Sine wave Inverter
- Upgraded 4th generation smart and intelligent solar inverter
- Zero transfer time
- Parallel up to 9 Units with optional Kit (6KVA )
- Efficiently Work without battery
- Upgraded MPPT based solar charge controller up to 5000 / 8000Watts
- Integrated Wi - Fi interface with Android App
- Battery Equalization
- Data logging and Storage function
- Energy Prioritization according to the timer
- Conformal Coating to Prevent from Dust and Humidity
- Compatible with Li-ion , LifePo4 and etc. )
- Batteries with BMS TWO MPPT ( 140AH ) based solar charge controller one for load two for torque load.
- Easy Replacement of fans.
- Energy prioritization according to the timer.
- Overload and Short Circuit Protection
- European Design and Engineered in Taiwan
| POWER | |
|---|---|
| Rated Power | 4000VA/3500W |
| INPUT | |
| Voltage | 230VAC |
| Selectable Voltage Range | 90-280VAC (For Home Appliances) / 170-280VAC (For Computer) |
| Frequency Range | 50Hz/60Hz (Auto Sensing) |
| OUTPUT (OFF GRID OPERATION) | |
| AC Voltage Regulation (Batt.Mode) | 230VAC±10% |
| Overload (Line mode) | 5a @>150% load; 10s @110%-150% load; 100ms @>200% Load |
| Efficiency(Peak) | 90% |
| Transfer Time | 10ms (For Personal Computers); 20ms (For Home Appliances) |
| Wave form | Pure Sine Wave |
| OUTPUT (GRID-TIE OPERATION) | |
| Nominal Output Voltage | 220/230/240 VAC |
| Output Voltage Range | 184-264.5 VAC or 195.5 - 253 VAC (Selectable) |
| Nominal Output Current | 16.2A |
| Power Factor | >0.99 |
| BATTERY | |
| Battery Voltage | 24VDC |
| Floating Charge Voltage | 27VDC |
| Overcharge Protection | 33VDC |
| SOLAR CHARGER & AC CHARGER | |
| Solar Charger Type | Two (MPPT) Parallel |
| Maximum PV Array Open Circuit Voltage | 500VDC |
| Maximum PV Array Power | 4000W 98% 5000W 82% |
| MPPT Range @ Operating Voltage | 120~450 VDC |
| Maximum Solar Charge Current | 80A + 60A = 140A |
| Maximum AC Charge Current | 60A |
| PHYSICAL | |
| Dimension.D*W*H(mm) | 140 x 295 x 465mm |
| Net Weight (kgs) | 12.2kg |
| Communication Interface | USB and Rs232 |
| OPERATING ENVIRONMNET | |
| Humidity | 0 to 90% Relative Humidity (Non-condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
