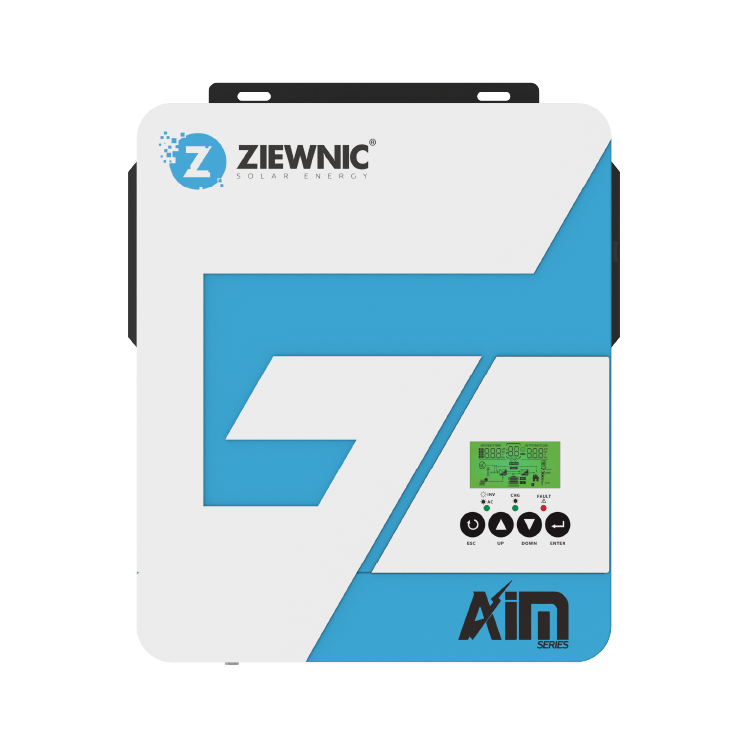

Aim Vm-III Pro (1500-12) 1.5 KVA - ZIEWNIC

Aim Inverter Series - Aim Vm-III Pro (1500-12) 1.5 KVA

Aim Vm-III Pro (1500-12) 1.5 KVA


5 out of 5
Download Catalog

  • Rs 0.00

    Category : Aim Inverter Series

    Availability : Out of Stock

View All Checkout
  • 100% Pure Sine Wave Solar Inverter
  • Built-in (100A) MPPT Solar Charge Controller
  • Output power faction 1.0
  • Inverter running with battery
  • Wi-Fi Optional - available for IOS/Android
  • Built-in anit dust for harsh environment
  • Smart battery charger design to optimize battery life
  • High input voltage range (80~500VDC) for easy sharing with load
  • Built-in DC output for DC Fan, LED Bulb, Router and so on
  • Battery equilization/Lithium battery supported
  • Adaptable to main voltage/generator power
  • Conformal coating to precent from Dust & Humidity
  • Built-in automatic electronics breaker for overload & short circuit protection.
SPECIFICATION
Rated Power 1500VA | 1500W
INPUT
AC Input 230 VAC
Voltage 170 ~ 280 VAC (For Personal Computer)
Selectable Voltage Range 90~280VAC (For Home Appliances)
Frequency Range 50 HZ / 60 HZ (Auto Sensing)
AC OUTPUT
AC Voltage Regulation AC Voltage Regulation
Surge Power 2400 VA
Efficiency (Peak) PV to INV 97%
Efficiency (Peak) Battery to Inv 94%
Transfer Time 10 ms (For Personal Computers); 20 ms (For Home Appliances
BATTERY AND AC CHARGER
Battery Voltage 12 VDC
Floating Charge Voltage 13.5 VDC
Overcharge Protection 16 VDC
Maximum AC Charger Current 100 A
SOLAR CHARGER
Maximum PV Array Power 2000W
MPPT Range @ Operating Voltage MPPT Range @ Operating Voltage 80 ~ 430 VDC
Maximum PV Array Open Circuit Voltage 450 VDC
Maximum Charge Current True (MPPT) 100A
Maximum Efficieny 98%
PHYSICAL
Dimension D * W * H (MM) 394 * 302 * 106
Net Weight (kgs) 7.95 kg
Communication Interface RS323 / GPRS / Wi-Fi
OPERATING ENVIRONMNET
Humidity 5% to 95% Relative Humidity (Non~Condensing)
Operating Temperature 0°C ~ 55°C
Storage Temperature -15°C ~ 60°C
