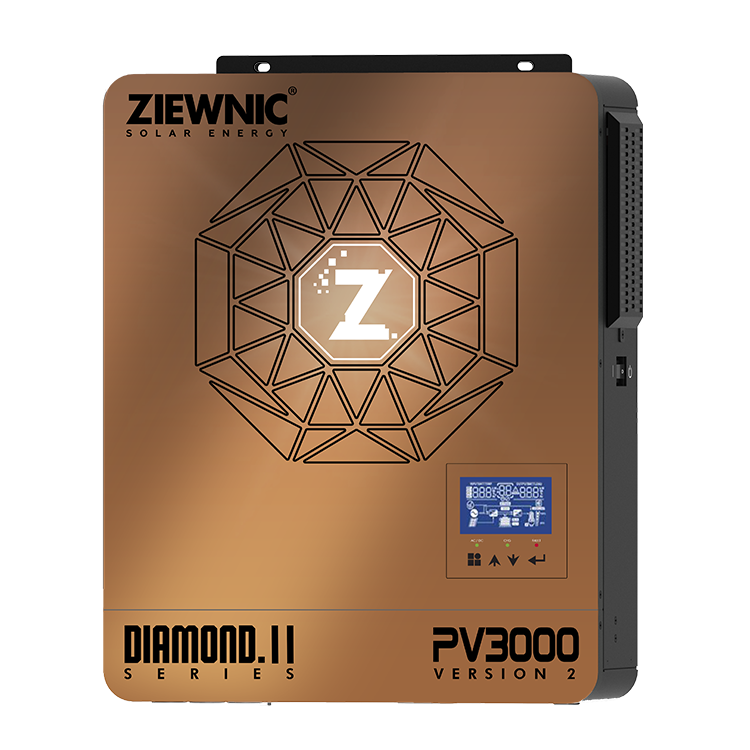

6G 2.2KVA (PV3000)

5 out of 5

INTRODUCING 1ST TIME IN PAKISTAN REAL 6TH GEN INVERTER, SUPPORTING HIGH EFFICIENCY MOSFET, CHOPPER WITH BIGGER SIZE.
DIAMOND II SERIES INVERTER SUPPORTS MULTIPLE OPERATION MODES
100% PURE SINE WAVE SOLAR INVERTER
OUTPUT POWER FACTOR 1.0
INVERTER RUNNING WITH BATTERY
RECORD FAULT CODE FEATURE IN PROGRAM (25)
ADAPTABLE TO MAIN VOLTAGE / GENERATOR POWER
CONFORMAL COATING TO PREVENT FROM DUST AND HUMIDITY
BUILT-IN AUTOMATIC ELECTRONICS BREAKER
UPGRADED LCD FUNCTION DESIGN WITH TOUCH BUTTONS
COMPATIBLE WITH ALL KINDS OF LITHIUM BATTERIES
98% REAL TIME SHARING
HIGH PV INPUT VOLTAGE RANGE (55~450 VDC)
OVERLOAD & SHORT CIRCUIT PROTECTION
MAXIMUM INPUT CURRENT 18A
1 BUTTON RESTORE SETTING OPTIONS IN PROGRAM (00)
OPTIONAL WI-FI AVAILABLE FOR IOS/ANDROID DEVICES
DESIGNED AND ENGINEERED IN TAIWAN

SPECIFICATION
Rated Power	2200VA
AC Input
Ac Input	230 VAC
Voltage	170~280 VAC (For Personal Computer)
Selectable Voltage Range	90~280VAC (For Home Appliances)
Frequency Range	50 HZ / 60 HZ (Auto Sensing)
AC OUTPUT
AC Voltage Regulation	230 VAC + 5%
Nominal Current Output	9.09A
Efficiency (Peak) PV to INV	97%
Efficiency (Peak) Battery to INV	94%
Transfer Time	10ms Typical(MS); 20ms Stapical( Appliances)
BATTERY AND AC CHARGER
Battery Voltage	12 VDC
Floating Charge Voltage	14 VDC
Overcharge Protection	16 VDC
Maximum AC Charge Current	80A
SOLAR CHARGER
Maximum PV Array Power	3000W
MPPT Range @ Operating Voltage	55-430 VDC
Maximum PV Array Open Circuit Voltage	430 VDC
Maximum Charge Current	TRUE (MPPT) 80A
Maximum PV Input Current	18A
Maximum Efficiency	98%
PHYSICAL
Communication Interface	RS323/GPRS/Wi-Fi
OPERATING ENVIRONMNET
Humidity	5% to 95% Relative Humidity (Non~Condensing)
Operating Temperature	0°C~55°C
Storage Temperature	-15°C-~60°C
